KUKA KR60-3

Awaiting more stock

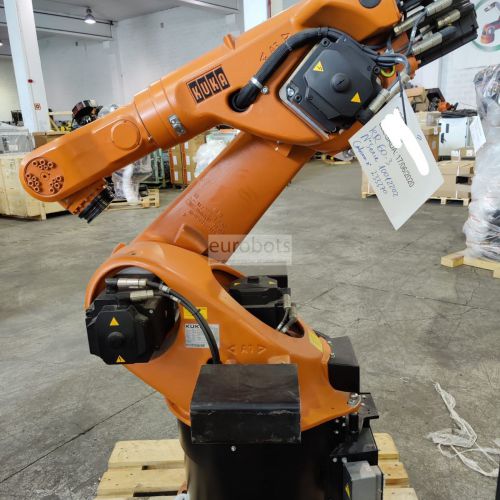

Industrial Robot KUKA KR60-3 highly versatile and flexible design, medium load with load capacity of 60 kg this robot can be programmed offline precisely, offers two variant the KR60-3 F for casting processes and the KR60-3 CR for applications in clean rooms, they provide a high performance in terms of precision and cycle times thanks to their perfectly adapted motors and gears, proving that this robot is one of the most profitable in the market.

KR C4 - Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability

Main specifications

Maximum Load of Robot: 60 Kg
Maximum horizontal arm reach: 2033 mm
Repeatability: ±0.06 mm
Controller: KRC4

Robot Motion Speed

Axis 1: 128°/s
Axis 2: 102°/s
Axis 3: 128°/s
Axis 4: 260°/s
Axis 5: 245°/s
Axis 6: 322°/s

Motion range

Axis 1: +185°-185°
Axis 2: +35°-135°
Axis 3: +158°-120°
Axis 4: +350°-350°
Axis 5: +119°-119°
Axis 6: +350°-350°

Robot Applications

Machine Loading
Machine Tending
Material Handling
Assembly
Bonding/Sealing
Cleanroom
Coating
Cutting
Foundry

Applications

Palletising , Loading and unloading of parts , Handling of parts , Assembly of parts

Diagrams
