Example: Dobot Palletizing solution

This is an exambple how you can use the Dobot's cobot for palletizing solution: high-speed, and reliable approach to palletizing tasks. By leveraging collaborative robots (cobots), this solution takes care of heavy lifting (8kg) while providing the flexibility to extend operating ranges by incorporating lifting pillars. It effectively relieves workers from repetitive work, resulting in increased overall efficiency.

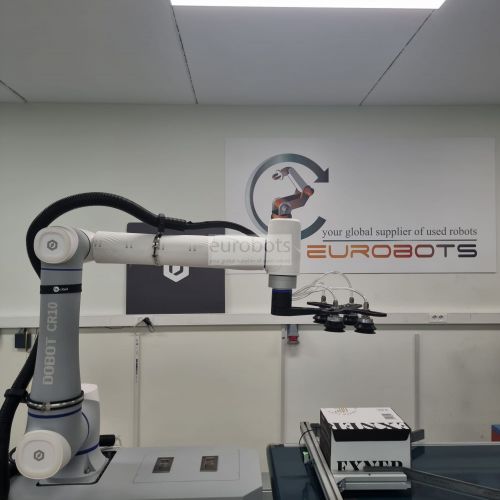

The palletizing kit provided by Dobot includes essential components such as the CR10, a vacuum gripper, a lifting pillar, a pallet detection sensor, and an indicator. These modules are designed to seamlessly integrate with each other, allowing for a plug-and-play experience. The setup process is simple and straightforward, requiring no coding knowledge. With an intuitive user interface, operators are guided through the setup process, enabling the cobot to be up and running within a short span of 5 to 10 minutes.

The solution also offers optimized operation capabilities, allowing for real-time adjustments at the modular level to maximize efficiency. This feature ensures that the palletizing process can be fine-tuned to meet specific requirements and achieve optimal performance.

Safety is a top priority in the workplace, and Dobot's solution takes this into account. It supports the integration of light curtains and laser scanners from third-party providers. By utilizing these safety measures, the solution provides an added layer of security to safeguard the well-being of the workers and maintain a safe working environment.

In summary, Dobot's cobot palletizing solution provides a comprehensive and user-friendly approach to automate palletizing tasks. With its precise and reliable performance, ease of deployment, real-time optimization, and focus on workplace safety, it offers significant advantages in terms of productivity, efficiency, and employee well-being.

  • Stroke 1400mm
  • Up to 8kg (recommendation)
  • Palletizing up to 1,8m
  • Palletize at both sides
  • 7 actions per minute
  • Collaborative
  • EXTRA: Additional safety (light curtain/LiDAR scanner)


Palletising , Handling of parts , Advanced Manufacturing
