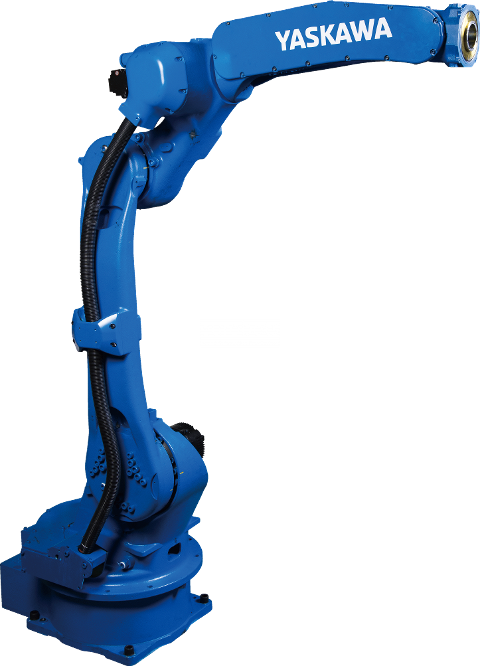

The GP25 is part of the series of GP robots characterized by their optimal control of acceleration and deceleration which allows to achieve a better productivity. The thin arm design allows easy, fast and efficient installation in a minimum space, minimal interference with other devices and can work in close proximity with other robots. Large load transfer capacity.
Optimal I / O communication speed to optimize up to 50% working efficiency.
High accuracy of speed in the performance of the trajectory.
Complete equipment and preventive maintenance information along with software tools for analysis that allows simplified maintenance and configuration.
Excellent wiring capacity only controller cable to the robot.
Its standard structure does not require a transformer for input voltages ranging from 380 V AC to 480 V AC.
Number of axis: 6
Maximum horizontal reach: 1,730 mm
Maximum vertical reach: 3,089 mm
Repeatability: ±0.06 mm
Axis L: +155°/-105°
Axis U: +160°/-86°
Axis R: ±200°
Axis B: ±150°
Axis T: ±455°
Axis L: 210°/s
Axis U: 265°/s
Axis R: 420°/s
Axis B: 420°/s
Axis T: 885°/s
