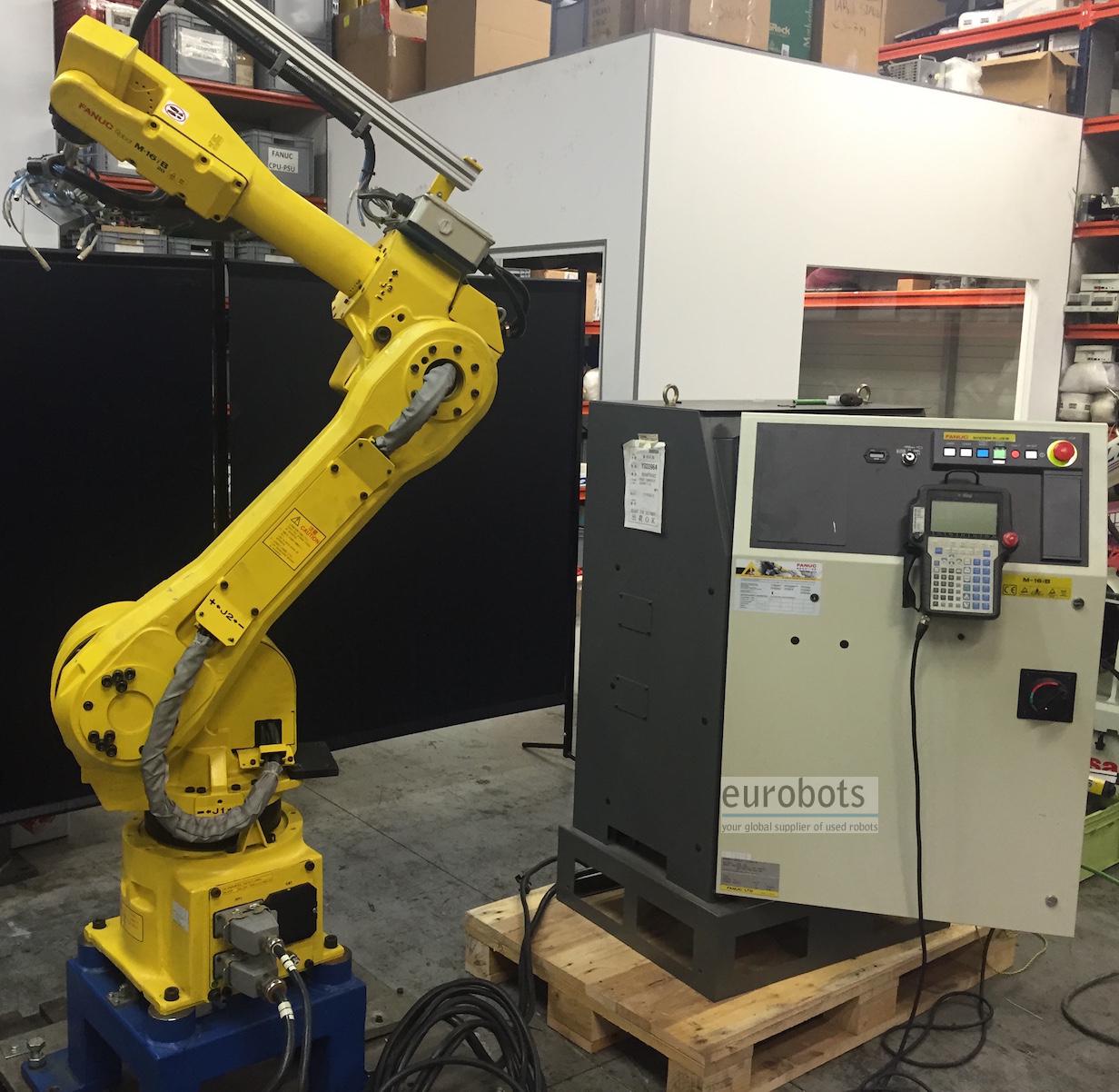

Fanuc M-16iB

Awaiting more stock

Medium payload 6 axis industrial robot. Typically used for handling, extraction of parts from injection machines, machining, etc...

The powerful and user friendly R-j3iB control system makes this robot one of the most popular ones in its range.

The FANUC M-16iB is a six-axis, modular construction, electric servo-driven robot designed for a variety of industrial applications. Based on its simple and reliable construction, the FANUC M16iBRJ3iB provides sophisticated motion control and consistent performance with high productivity.

The FANUC M-16iB features:

• Small footprint supports placement in confined areas
• Dust and water resistant design maximizes durability
• Work envelope and position flexibility are eliminated by absolute serial encoders
• Absolute serial encoders dismiss the need for calibration at power-up
• No modification of robot for upright, inverted, angle and wall mounting
• Best axes speeds in its class

Rj3iB control features

- B size cabinet
- Quick change amplifier
- Fast boot time < 30 s
- PCMCIA Software distribution
- Easy connections to a variety of I/O
- Color teach pendant for even easier programming and custom cell user interface design.

General specifications

  • Number of axis: 6
  • Maximum Load of Robot: 20 kg
  • Maximum horizontal arm reach: 1667 mm
  • Repeatability: ±0.08 mm
  • Controller: R-J3iB

Robot motion speed

  • Axis 1: 165°/s
  • Axis 2: 165°/s
  • Axis 3: 165°/s
  • Axis 4: 165°/s
  • Axis 5: 165°/s
  • Axis 6: 165°/s

Robot motion range

  • Axis 1: ±170°
  • Axis 2: +160° -90°
  • Axis 3: +290° -170°
  • Axis 4: ±200°
  • Axis 5: ±140°
  • Axis 6: ±450°

Robot applications

  • General handling
  • Machining
  • Dispensing
  • Machine loading
  • Arc welding

Applications

Arc welding , Loading and unloading of parts , Machining , Handling of parts , Polishing , Glueing - Adhesive bonding , Plasma cutting
