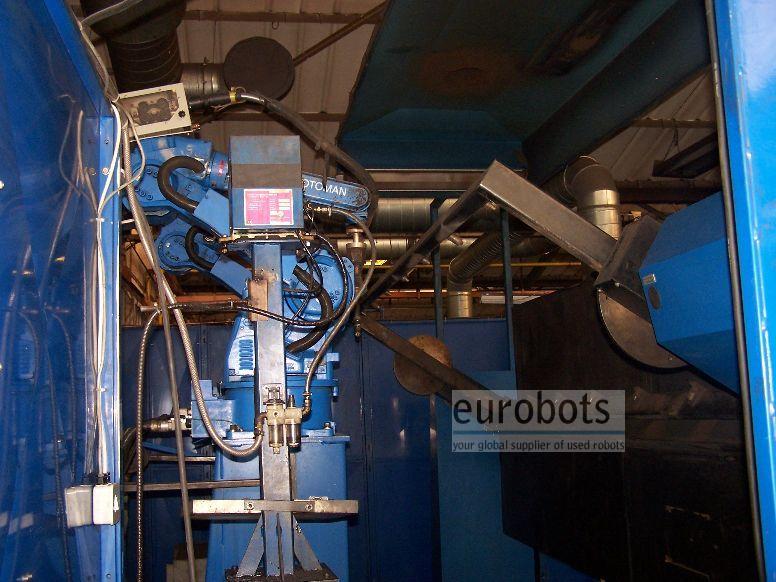

Motoman Twin robotic arc welding cell Arcsystem 6000 - 2 robots

Awaiting more stock

Complete Motoman Arc welding cell, suitable for arc welding of large parts allowing short welding cycles consisting of:

- Two Motoman 6 axis model UP20 industrial robots, 1685 mm horizontal arm reach, with XRC controller arc welding robots working syncronized (TWIN CONFIGURATION)

- Motoman RM2-500 SX 3 axis servocontrolled positioner (loading and unloading station, 180º automatic turn), 3500 mm length and 500 kg loading capacity.

- SKS power source, water cooled, 400 A power

- Torch cleaning station

- Technical specifications of the Motoman UP20 robot in http://www.eurobots.net/desc/id/93/Motoman-UP20-robots-en.html


Applications

Arc welding
