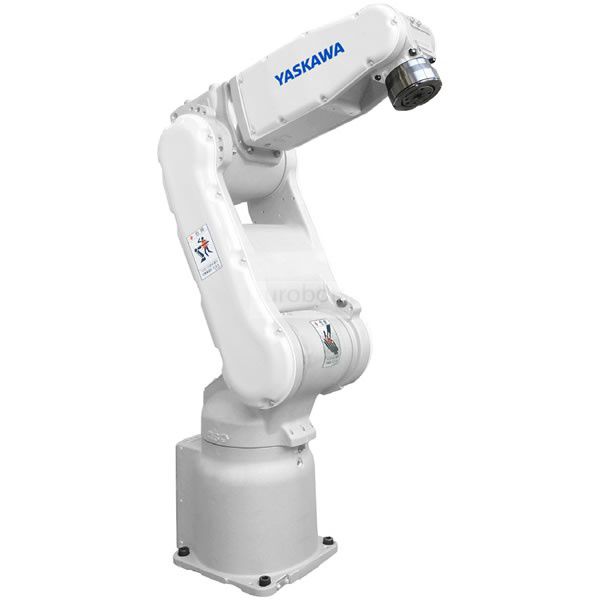

The MH5S II robot with a lightweight and compact design with a load capacity of 5 kg and an arm range of 706 mm can be installed on the wall, ceiling or on a table. The shortened distance between the B axis and the T axis improves capacity load with high moments of inertia. They are suitable for a wide range of tasks, from the assembly of small parts to the packaging of high-speed boxes and arc welding.
Minimal integration costs.
Increased reliability and energy efficiency.
Improved maintenance capacity, reduced average repair time (MTTR).
Category 3 Performance Level Functional Safety Unit (FSU).
Control of multiple robot of up to 8 robots / 72 axes with synchronized movement between devices.
Advanced robot motion control (ARM) provides high productivity and trajectory planning.
Small and light pendant with Windows® CE programming color touch screen with multiple window viewing possibilities.
Number of axis: 6
Maximum horizontal reach: 706 mm
Maximum vertical reach: 1,193 mm
Repeatability: ±0.02 mm
Controller: DX200, FS100, MLX200
Axis L: - 65°/+150°
Axis U: -136°/+255°
Axis R: ±190°
Axis B: ±135°
Axis T: ±360°
Axis L: 350°/s
Axis U: 400°/s
Axis R: 450°/s
Axis B: 450°/s
Axis T: 720°/s
Pick and Place
