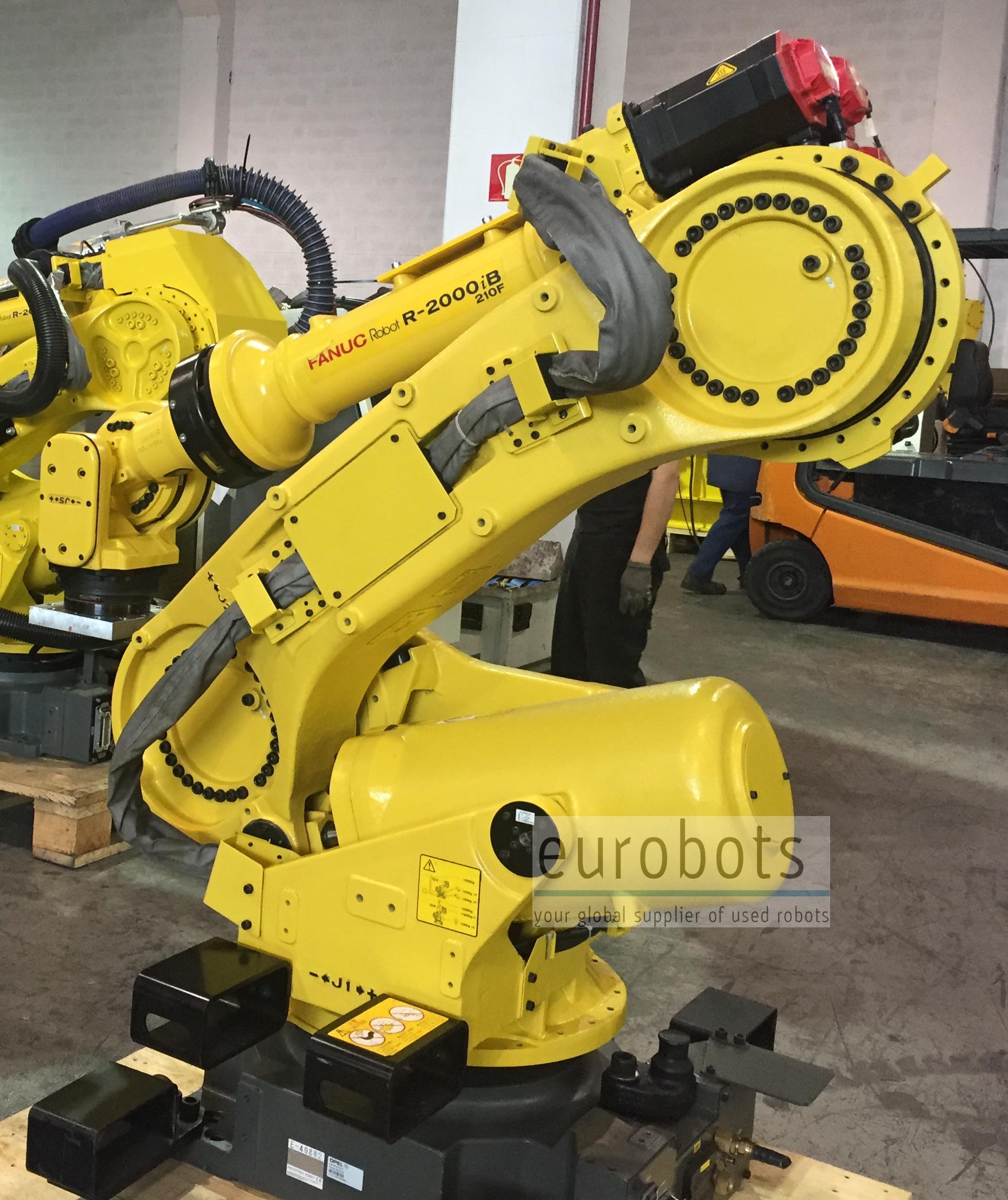

Fanuc R-2000iB-210F

Third generation of the R2000, one of the most popular heavy duty 6 axis industrial robots ever built by Fanuc Robot Industries.

This one is an improved R2000iB electromechanical arm coupled with the state of the art R-30iA Fanuc controller. This 210 kg and 2650 mm horizontal arm reach robot is a faster and lighter one than its predecessor. Suitable for general handling of heavy payloads, palletizing, welding, plasma cutting, milling, etc...

The R-30iA controller has important advantages when it comes to power consumption, connectivity with the periphery (PLCs) and ergonomy with the new color display E-pendant. The programming software is also much more powerful than its predecessor, the Rj3ic.

Robot Info

  • Number of axis: 6
  • Maximum load: 210 Kg
  • Maximum Reach: 2650 mm
  • Repeatability: 0.3 mm
  • Controller: R-30iA

Robot Motion Speed

  • Axis 1: 95º/s
  • Axis 2: 90º/s
  • Axis 3: 95º/s
  • Axis 4: 120º/s
  • Axis 5: 120º/s
  • Axis 6: 190º/s

Robot motion range

  • Axis 1: ±180°
  • Axis 2: +75° -60°
  • Axis 3: +230° -132°
  • Axis 4: ±360°
  • Axis 5: ±125°
  • Axis 6: ±360°

Applications

Spotwelding , Press tending , Palletising , Loading and unloading of parts , Machining , Handling of parts , Glueing - Adhesive bonding , Stud welding , Plasma cutting
