Fanuc Arcmate 100iB

Awaiting more stock
The Fanuc Arcmate 100iB is suitable for arc welding and general handling applications.
This robot is a six-axis, electric servo-driven robot capable of precise high-speed and accurate welding and cutting. Accuracy and performance are designed into the ArcMate 100iB for all your welding and cutting requirements.


Features

* Compatible with all major brands of welding equipment
* Interfaces with most types of servo driven or indexing positioners
* Sealed bearings and drives provide protection and improve reliability
* Integrated controller reduces footprint and eliminates exposed connection cables
* cable routing through center of axis rotation improves reliability

Coupled with the powerful Rj3iB controller


Rj3iB control features

- B size cabinet
- Quick change amplifier
- Fast boot time < 30 s
- PCMCIA Software distribution
- Easy connections to a variety of I/O

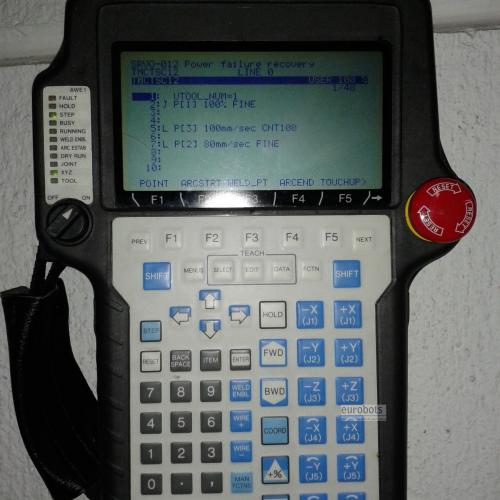

- Color teach pendant for even easier programming and custom cell user interface design.

Robot technical specifications

  • Number of axis: 6
  • Maximum Load of Robot: 6kg
  • Maximum Reach: 1373 mm
  • Repeatability: ±0.08 mm
  • Controller: RJ3iB

Robot Motion Speed

  • Axis 1: 150º/s
  • Axis 2: 160º/s
  • Axis 3: 170º/s
  • Axis 4: 400º/s
  • Axis 5: 400º/s
  • Axis 6: 520º/s

Robot Motion Range

  • Axis 1: 340°
  • Axis 2: 250°
  • Axis 3: 315°
  • Axis 4: 380°
  • Axis 5: 280°
  • Axis 6: 720°

Applications

Arc welding , Painting , Loading and unloading of parts , Handling of parts , Plasma cutting
