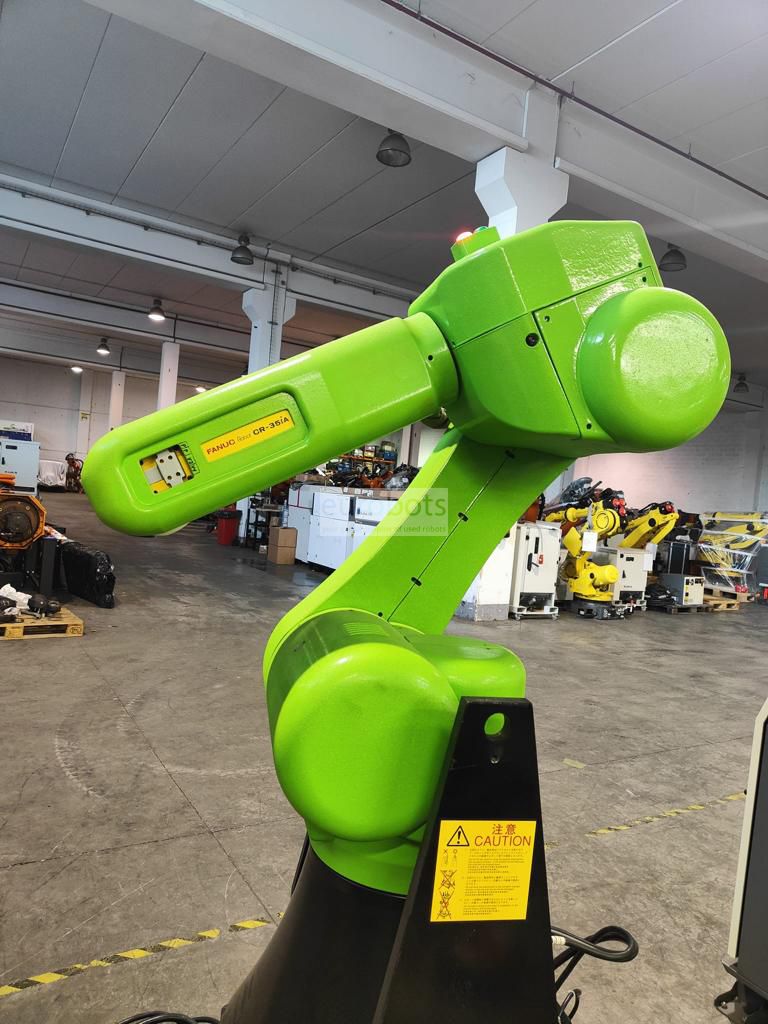

CR-35iA collaborative robot characterized by its load capacity of 35 kg ideal for manipulation of heavy elements in any position, reach of 1813 mm, has a system of integrated sensors that stops allow the robot greater strength and safety in the process of easy programming production; certificate in security.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Number of axis: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.04 mm (Based on ISO9283)
Axis 2: 165°
Axis 3: 258°
Axis 4: 400°
Axis 5: 220°
Axis 6: 900°
