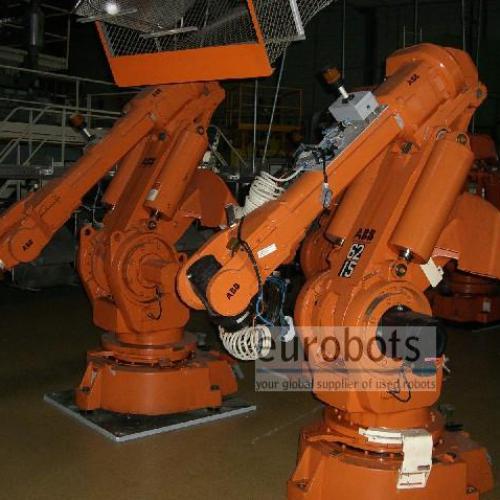

ABB IRB 6000 M92 M93

Awaiting more stock

Robust high payload 6 axis robot with speeds up to 2.5 . Up to 8 different languages at a push of a button. As an option, the controllers are equipped with conveyor tracking system.

The ABB IRB 6000 allows customized configurations of the standard modular design that reduces the cost of set up, maintenance, parts, and training. With a 120kg (265 lbs) handling capacity and 2.4m (94 in) reach, the IRB 6000 will cover an assortment of application requirements. Handling capacity can be increased to 150kg (330 lbs) with another wrist and the IRB 6000 offers different versions for single point welding and press tending applications.

Robot Info:

  • Maximum Load of Robot: 120Kg.
  • Maximum Reach: 2400 mm.
  • Repeatability: 0,4 mm.
  • Controller: M92-M93A S3.

Robot Motion Speed:

  • Axis 1: 100º/seg
  • Axis 2: 100º/seg
  • Axis 3: 100º/seg
  • Axis 4: 210º/seg
  • Axis 5: 150º/seg
  • Axis 6: 210º/seg

Robot Applications:

  • Spot welding
  • Press tending
  • Material handling
  • Machine tending
  • Palletizing
  • Assembly


Spotwelding , Press tending , Palletising , Loading and unloading of parts , Handling of parts
