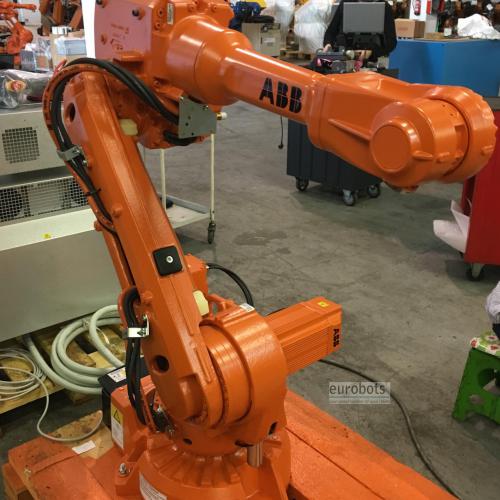

ABB IRB 2600 Foundry Plus

Awaiting more stock

Medium payload six axis industrial robot, 20 kg payload, evolution of the popular ABB IRB 2400. Coupled with the latest version of the IRC5 M2004 controller. Fast, robust and accurate. This robot has a special protection IP67 (Foundry Plus version)  for harsh environments. Suitable for handling, arc welding and machining applications.

This unit comes with the IRC5 M2004 (fifth generation of ABB control system) controller which features:

FlexPendant

The FlexPendant is characterized by its clean, color touch screen-based design and 3D joystick for intuitive interaction. Powerful customized application support enables loading of

RAPID programming language

RAPID programming provides the perfect combination of simplicity, flexibility and power. It is a truly unlimited language with support for structured programs, shop floor language

and advanced features. It also incorporates powerful support for many process applications.

Communication

The IRC5 supports the state-of-the-art field busses for I/O and is a well-behaved node in any plant network. Sensor interfaces, remote disk access and socket messaging are examples of the many powerful networking features.

Motion control

The IRC5 supports the state-of-the-art field busses for I/O and is a well-behaved node in any plant network. Sensor interfaces, remote disk access and socket messaging are examples of the many powerful networking features.

Robot Infos

  • Maximum Load of Robot: 20 Kg
  • Maximum Reach: 1650 mm
  • Point to Point repeatability: 0.04 mm
  • Controller: IRC5 M2004

Robot Motion Speed

  • Axis 1: 175º/s
  • Axis 2: 175º/s
  • Axis 3: 175º/s
  • Axis 4: 360º/s
  • Axis 5: 360º/s
  • Axis 6: 500º/s

Robot Applications:

  • Arc welding
  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting

Applications

Arc welding , Loading and unloading of parts , Machining , Handling of parts
