ABB IRB 2400 M94A

Awaiting more stock

The ABB IRB2400 is one the top robots of ABB in their recent story. This small payload robot is ideal for applications that require short time cycles and high precision. Arc welding is also a very common use for this type of robot. The S4 controller enables the RAPID programming instructions making programming easier.
Mft. Year: 1995-1997.
Mounting position: Floor, ceiling

Robot Info:

  • Maximum Load of Robot: 10Kg.
  • Maximum Reach: 1500 mm.
  • Repeatability: 0,2 mm.
  • Controller: M94A-M96 S4.

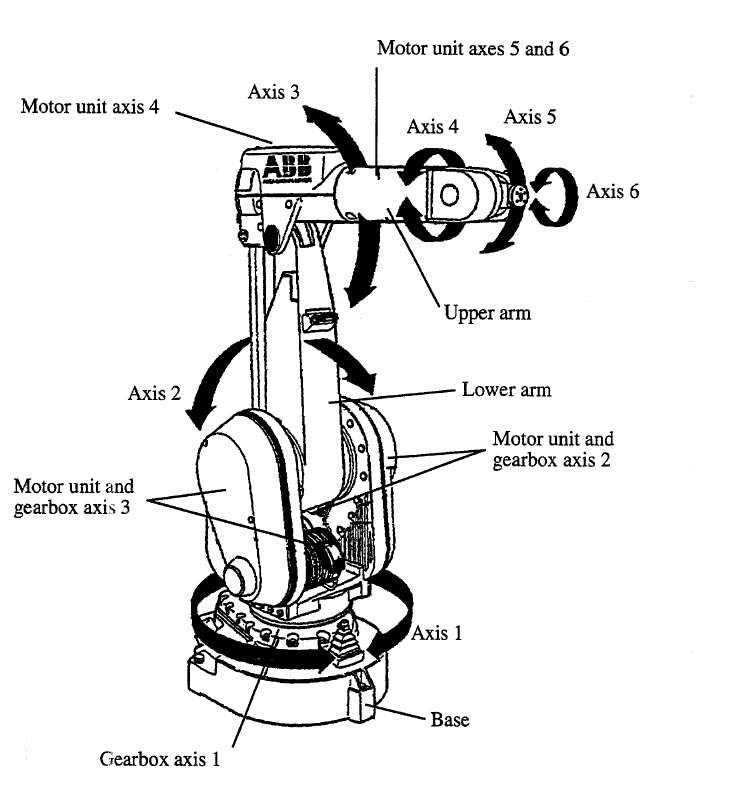

Robot Motion Speed:

  • Axis 1: 115º/seg
  • Axis 2: 115º/seg
  • Axis 3: 115º/seg
  • Axis 4: 280º/seg
  • Axis 5: 300º/seg
  • Axis 6: 300º/seg

Robot Applications:

  • Arc welding
  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting


Arc welding , Painting , Loading and unloading of parts , Machining , Handling of parts
