ABB IRB 2400/16 M2004

Awaiting more stock

6 axis industrial robot. 1550 mm arm reach and 16 kg payload. Equipped with the powerful IRC5 controller.

The IRB 2400 in its different versions and best accuracy, gives excellent performance in material handling, machine tending and process applications. IRB 2400 offers you increased production rates, reduced lead times and faster delivery for your manufactured product.

  • Reliable – High production up time
    IRB 2400 is the world’s most popular industrial robot The robust construction and use of minimum parts contribute to high reliability and long intervals between maintenance.
  • Fast – Short cycle times
    Thanks to the ABB´s unique motion control of the robot optimizes the acceleration and retardation, which results in shortest cycle time possible.
  • Accurate – Consistent parts quality
    Best in class regarding path accuracy and position repeatability (RP = 0.06 mm)
  • Strong – Maximized utilization
    Payload options are between 7 -20 kg. Max reach 1.810 m.
  • Robust – Harsh production environment
    IP 67 classified, steam washable, clean room (class 100) and “Foundry Plus” optional.
  • Versatile – Flexible integration and production
    All models offered with inverted mounting capability.

Robot info

  • Robot Maximum load : 16 Kg .
  • Maximum range : 1,550 mm.
  • Repeatability: 0.15 mm.
  • Controller: IRC5 M2004

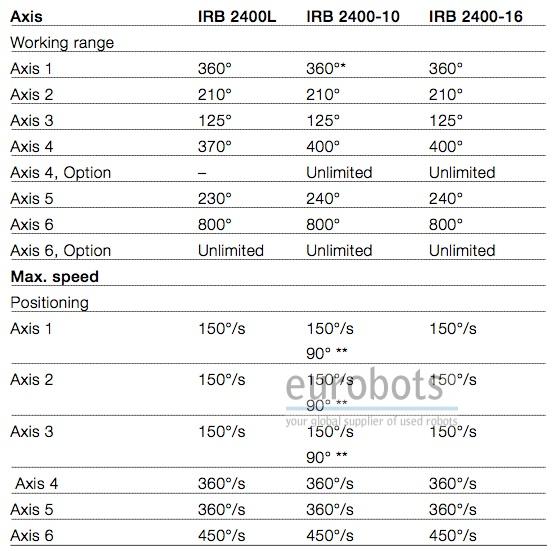

Robot motion speed

  • Axis 1: 150 / s
  • Axis 2: 150 / s
  • Axis 3: 150 / s
  • Priority 4: 360 ° / s
  • Priority 5: 360 ° / s
  • Axis 6 : 450º / s

Robots applications

  • Arc welding
  • Material handling
  • olished
  • Machining

Applications

Arc welding , Loading and unloading of parts , Machining , Handling of parts , Polishing , Measurement , Assembly of parts , Plasma cutting
