ABB IRB 1400 M98

The ABB IRB 1400 is fast, reliable, and affordable, making it the perfect choice for any arc welding application or handling of small parts.

This robot is equipped with the S4C controller, a new concept if compared to its predecessor, the S4. The S4C also enables the RAPID instructions easing the programming tasks apart from other additional enhanced features.

The IRB 1400, with its hanging variant is ideal for a limited work place when a large work-processing area is required. The 1400 will increase productivity with its fast and reliable work cycles, long maintenance intervals and low noise levels. Less maintenance means more profits resulting from less down time.

The IRB 1400 is a favorite for factory floors in need of an arc welder, material handling, and process applications. With a handling capacity of 5 kg and a supplementary load on the upper arm that can handle 18 kg, combined with speed and accuracy allowing for high performance operations.

Robot Info:

  • Number of axis: 6
  • Maximum Load of Robot: 5Kg.

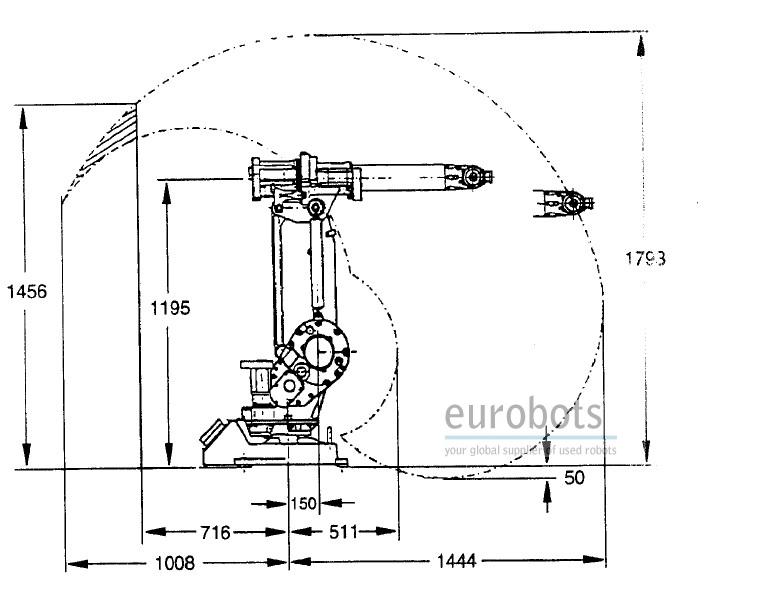

  • Maximum Reach: 1440 mm.
  • Repeatability: 0.05 mm.
  • Controller: M97A-M98A-M99 S4C.

Robot Motion Speed:

  • Axis 1: 120º/seg
  • Axis 2: 120º/seg
  • Axis 3: 120º/seg
  • Axis 4: 280º/seg
  • Axis 5: 280º/seg
  • Axis 6: 280º/seg

Robot Applications:

  • Arc welding
  • Handling of small parts
  • Process applications

Applications

Arc welding , Painting , Loading and unloading of parts , Handling of parts , Assembly of parts
