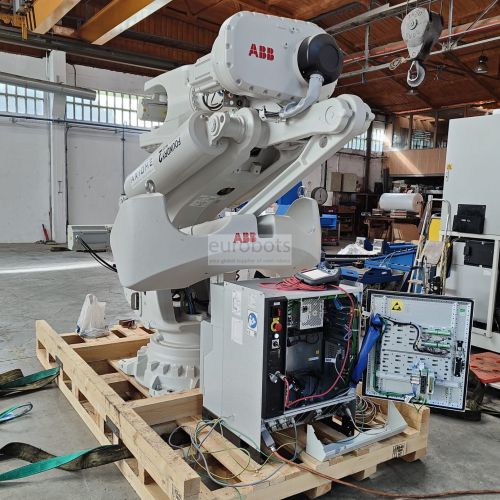

ABB IRB 8700

Awaiting more stock

The IRB 8700 robot is part of the eighth generation of ABB robots in order to present a robot with greater handling capacity and reliable and safe performance. With compact design using fewer elements, that is, it has only one motor and one gear per robot axis, improvements in the counterweight, parallel connections, rigid axes which gives us minimum cycle times, high precision and 25% faster adjusting easily to heavy and large pieces. It also comes in ABB's Foundry Plus2 version as standard protection.

Main specifications

Robot version IRB 8700- 800/3.50 IRB 8700- 550/4.20
Maximum Load of Robot 800 kg (The load is up to 1000 kg while the wrist is down.)  550 kg
Maximum reach 3500 mm 4200 mm
Number of axis 6 6
Position repeatability RP 0.05 mm 0.08 mm
Path repeatability RT 0.07 mm 0.14 mm
Controller IRC5 Single cabinet IRC5 Single cabinet

Range of motion

Axis 1: ±170° to ±170° (Option: ±220° to ±220°)
Axis 2: -65°/+90°
Axis 3:-30°/+132°
Axis 4: ±300° to ±300°
Axis 5: ±130° to ±130°
Axis 6: ±360° to ±360°

Robot motion speed

Axis 1: 75°/s
Axis 2: 60°/s
Axis 3: 60°/s
Axis 4: 85°/s
Axis 5: 85°/s
Axis 6: 115°/s

Robot Applications

Material handling






Applications

Handling of parts
