KUKA KR350

Yok
Agir yük gerektiren uygulamalar gelistirmeye icin robot.
Robot KR 350 yere veya tavana montaj icin bir alti eksenli endüstriyel robot. Yol kontrollü görevleri - Noktadan noktaya ve sürekli için uygundur.
Windows 95 tabanli KR C1A kumanda ile donatilmis.


KR C1A controller specifications:

• Open PC technology with networking capability.
• CAN/DeviceNet and Ethernet as standard. Slots for common bus systems (e.g. INTERBUS-S,
FIPIO).
• Integrated oscilloscope function for robot diagnosis and programming support.
• Motion profile function for optimum interaction between the individual robot motors and their
velocity.
• Floppy disk and CD-ROM drives for backing up data.
• Facilities such as master/slave operation of robots or remote diagnosis via the Internet.
• Easy operator control and programming via KUKA Control Panel (KCP) with Windows 95
graphic user interface.
• Compact, stackable control cabinet.
• One controller for all robot models.
• Ergonomic KCP design.

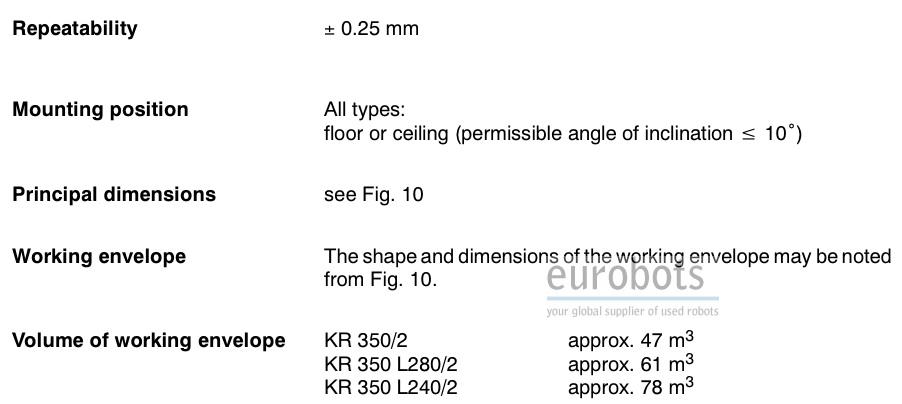

Robot Info:

  • Maximum Load of Robot: 350/280/240Kg.

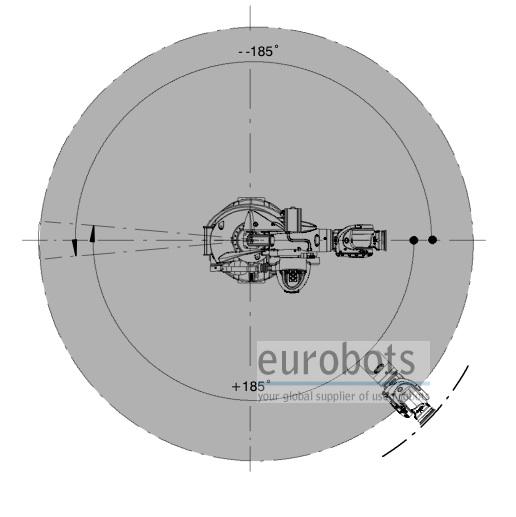

  • Maximum Reach: 2535/2735/2935 mm.
  • Repeatability: 0,25 mm.
  • Controller: KR C1A

Robot Motion Speed:

  • Axe 1: 75º/seg
  • Axe 2: 75º/seg
  • Axe 3: 75º/seg
  • Axe 4: 102º/seg
  • Axe 5: 100º/seg
  • Axe 6: 154º/seg

Robot Applications:

  • Handling, loading and unloading
  • Packaging and order picking
  • Spot welding and other welding processes
  • Painting, surface treatment
  • Metal casting machines, foundry plants
  • Painting, enameling and other coating operations
  • Application of adhesives and sealants
  • Machining
  • Waterjet cutting
  • Machining
  • Other machining operations
  • Assembly
  • Fastening
  • Forging plants
  • Cutting machine tools
  • Measuring, testing and inspection

Applications

Spot kaynağı , Basın desteği , Parçaların yüklenmesi ve boşaltılması , Talaşlı imalat , Parçaların taşınması , Nd-Yag Lazer Kaynak
