Fanuc M-410iC/315

Awaiting more stock

Industrial robot M-410iC / 315 of 4 axes of compact structure with a design of high precision and handling at high speed of payloads of up to 315 kg. It provides greater performance in palletizing applications and loading/unloading can stack pallets up to 2 m high, highly reliable thanks to its hollow wrist that allows the internal routing of the cable to avoid interferences.

The M-410 series from Fanuc specializes in high performance palletization and handling with 700 kg load capacity and 3 m in arm reach. It offers a great work envelope. It can handle large tweezers and heavy loads at maximum speed. Internal wiring through the wrist for safety. There is the integrated base model with controller and pedestal and without pedestal saves space and facilitates assembly and transport.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 315 kg
Number of axis: 4
Maximum horizontal reach: 3143 mm
Repeatability: ± 0.5 mm
Controller: R30iB

Motion range (°)


Axis J1: 360°
Axis J2: 144°
Axis J3: 136°
Axis J4: 720°

Maximum speed (°/s)

Axis J1: 90°/s
Axis J2: 100°/s
Axis J3: 110°/s
Axis J4: 195°/s

Robot applications

Palletising
Parts transfer
Loading and unloading


Applications

Palletising , Loading and unloading of parts , Handling of parts

Pictures

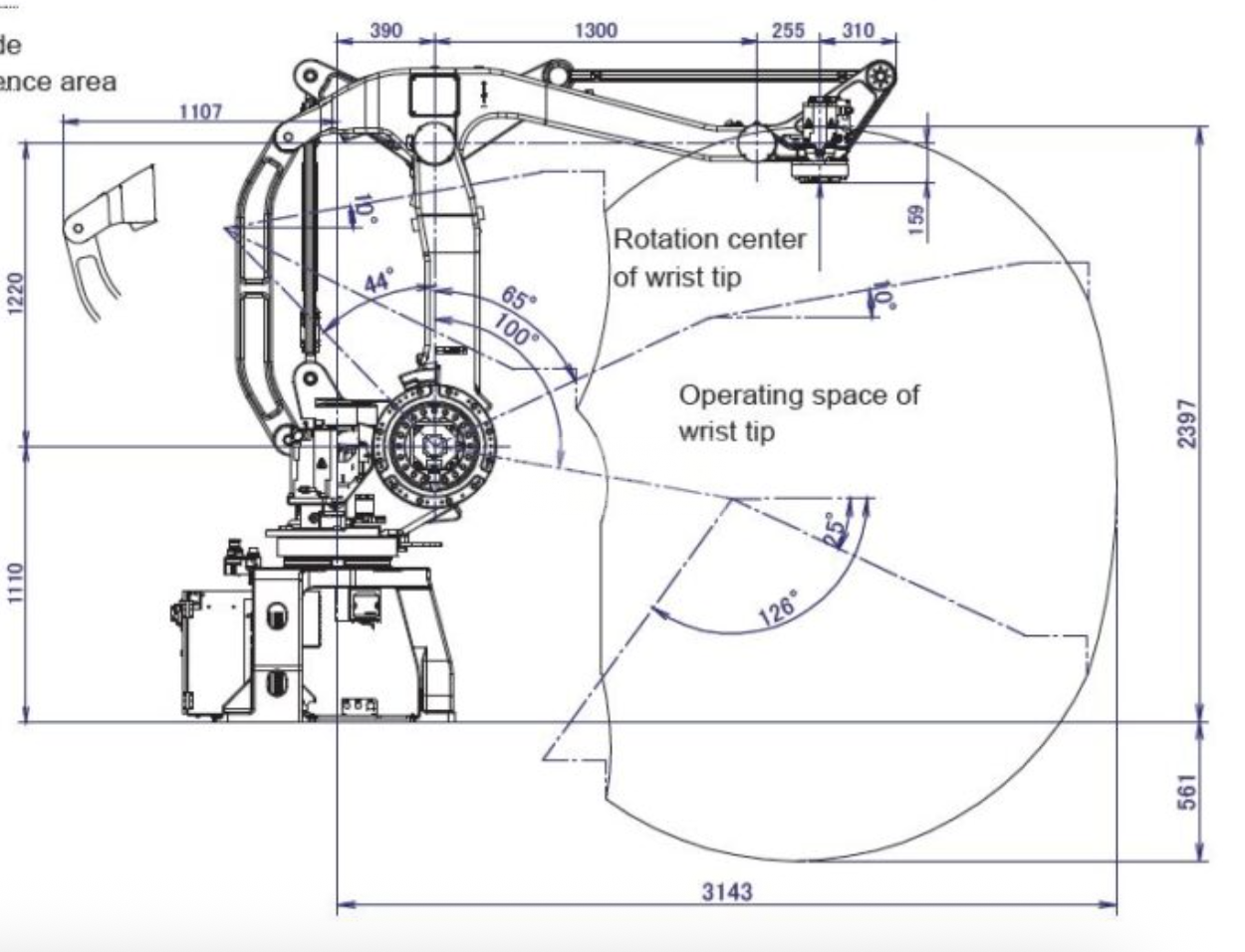

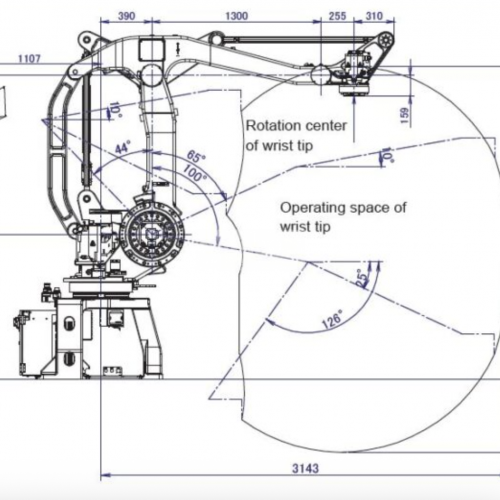

Diagrams
