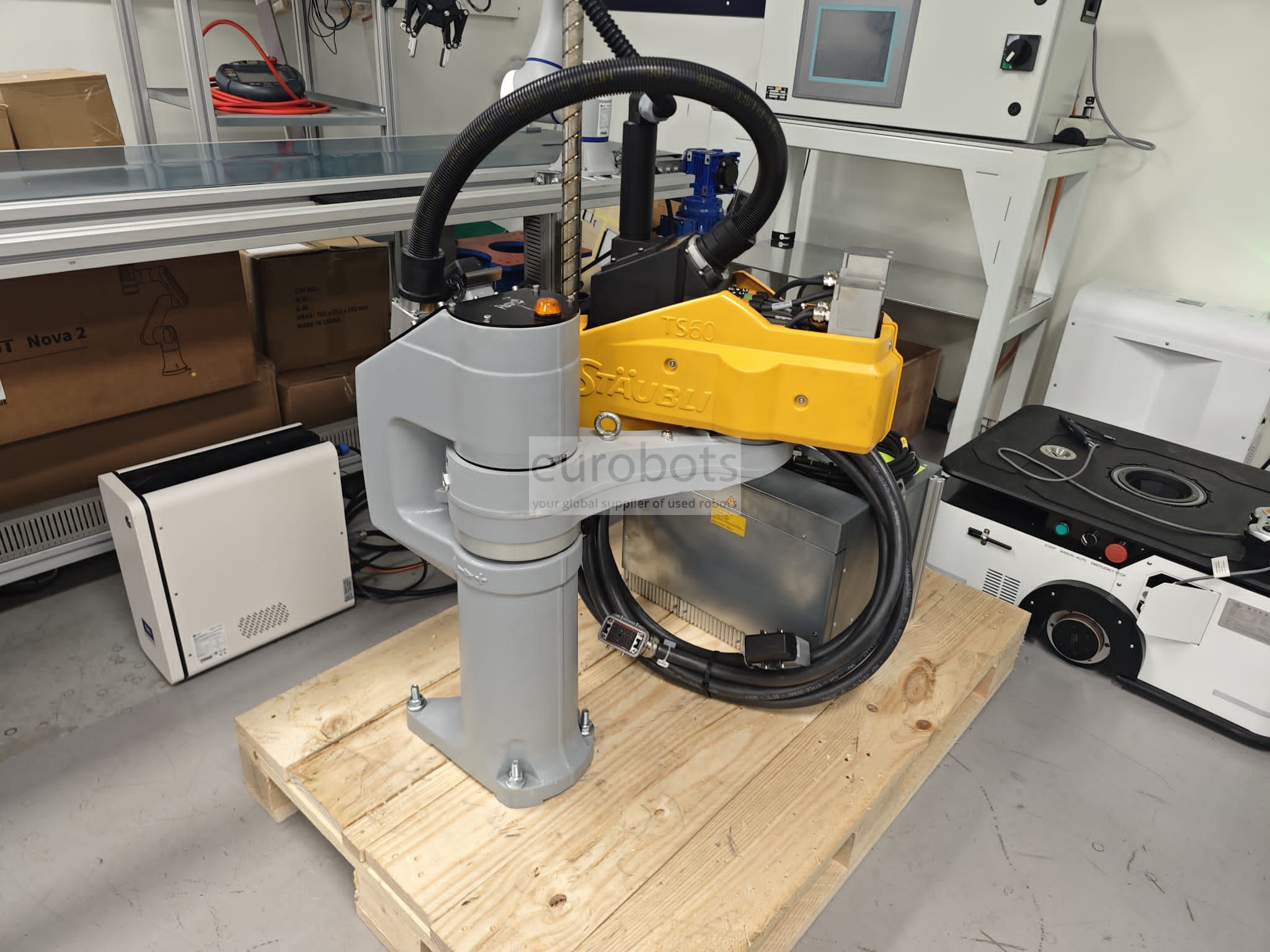

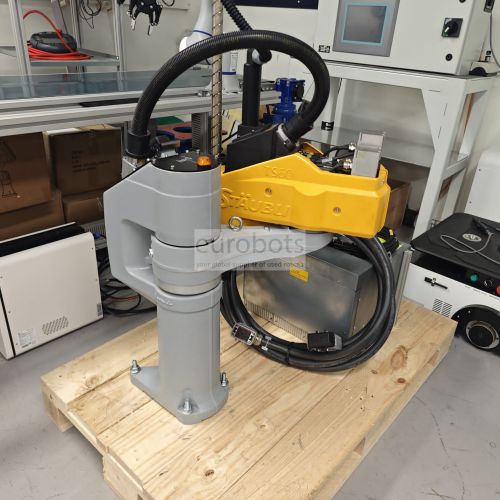

Other Robots STAUBLI TS60 SCARA
Stäubli's TS60 robot is a SCARA-type industrial robot, which stands for Selective Compliance Assembly Robot Arm. This type of robot is used for production applications requiring high speed, precision and flexibility, such as assembly, material handling, pick and place, quality inspection, etc. Year of production 03-2020
Stäubli's TS60 robot has an encapsulated design that allows it to work in sensitive environments, such as those in the food, pharmaceutical, or electronics industries.

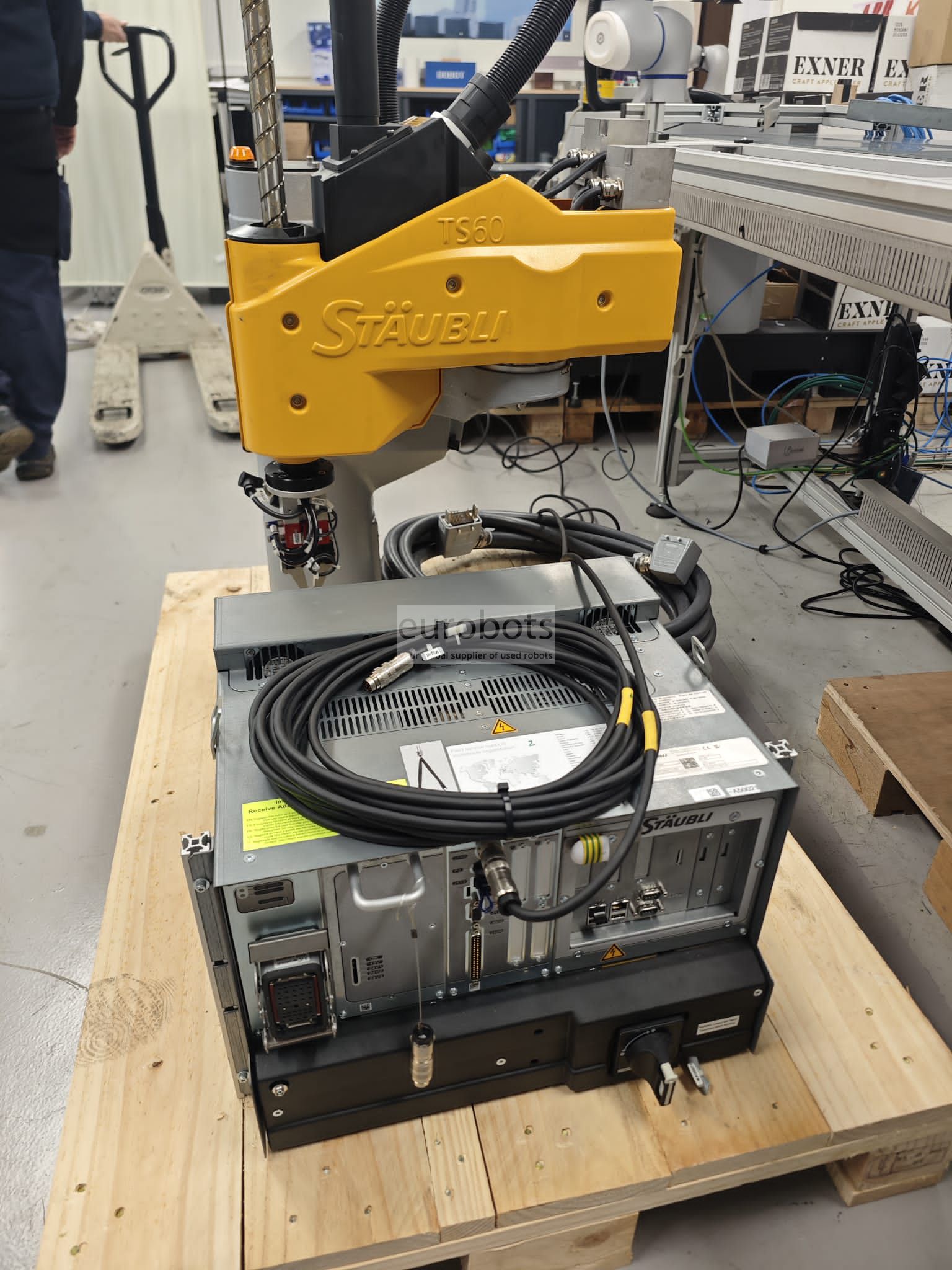

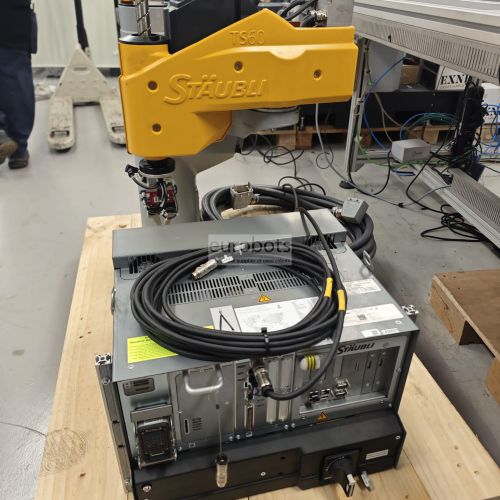

It also has a patented drive technology that facilitates ultra-short cycle times and high repeatability. The TS60 robot has a payload capacity of 8.4 kg, a reach of 620 mm, and a repeatability of ± 0.01 mm. It is controlled by Stäubli's CS8C controller, which also controls the TX2 6-axis robots.
General data
| Axis | 4 |
| Load capacity | 8.4 kg |
| Reach | 620 mm |
| Stroke | 200 mm or 400 mm (option) |
| X-Y repeatability | ± 0,01 mm |
| Z repeatability | ± 0,004 mm |
| Repeatability R-Z | ± 0,002°. |
| Protection class: EN 60529 | Up to IP65 with ball screw and bellows cover |
| Mounting methods | Floor or ceiling |
| Stäubli controller | CS8C |
Applications
- Assembly
- Pick and place
- material handling
- Quality inspection
