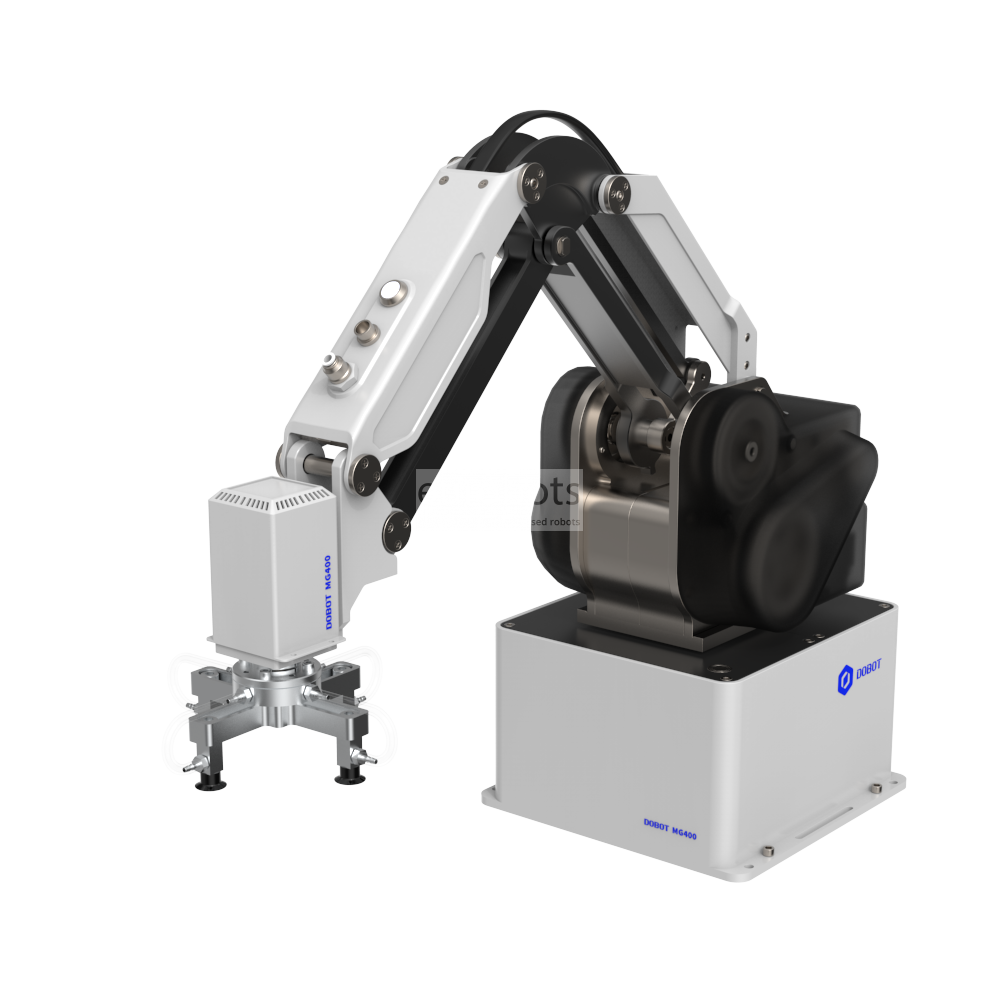

Dobot MG400 cobot
The MG400 is a compact robotic arm designed for desktop use, featuring a footprint even smaller than an A4 size paper. It prioritizes safety in human collaboration, offers user-friendly operation, and allows for swift deployment, making it an ideal choice for automating small batch flexible productions. With a maximum payload capacity of 750 g and a reach of up to 440 mm, along with drag-to-teach programming and collision detection capabilities, the MG400 provides a cost-effective solution for smart automation tasks.
The MG400 is equipped with a user-friendly interface that simplifies programming and control. It offers multiple programming options, including a graphical interface for intuitive operation, scripting using programming languages like LUA, and compatibility with various APIs such as C, C#, Python, Kotlin, and more. This flexibility allows users to program and customize the robot's actions according to their specific needs and workflow requirements.
| Number of Axes | 4 | |
| Payload | 500 g (Max. 750 g) | |
| Working Radius | 440 mm | |
| Repeatability | ±0.05 mm | |
| Range of Motion | J1 | ±160° |
| J2 | -25°~85° | |
| J3 | -25°~105° | |
| J4 | ±180° | |
| Maximum Joint Speed | J1 | 300° /s |
| J2 | 300° /s | |
| J3 | 300° /s | |
| J4 | 300° /s | |
| Power | 100~240V AC, 50/60 Hz | |
| Rated Voltage | 48V | |
| Power Consumption | 150W | |
| Communication Interface | TCP/IP, Modbus TCP | |
| Installation | Desktop | |
| Weight | 8 kg | |
| Base Size | 190 mm × 190 mm | |
| Environment | 0° ～ 40° C | |
Applications
Loading and unloading of parts , Handling of parts , Measurement , Assembly of parts , 3C Electronics , Advanced Manufacturing , Education
